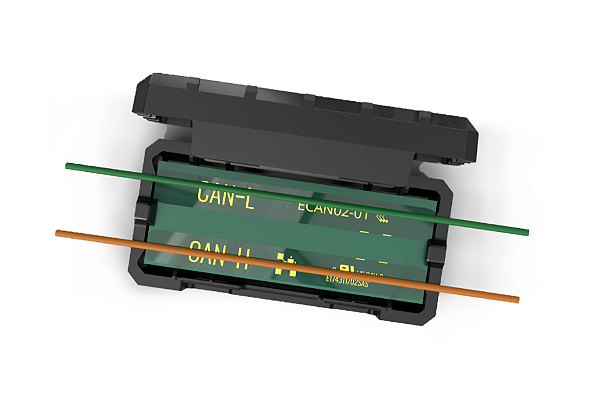

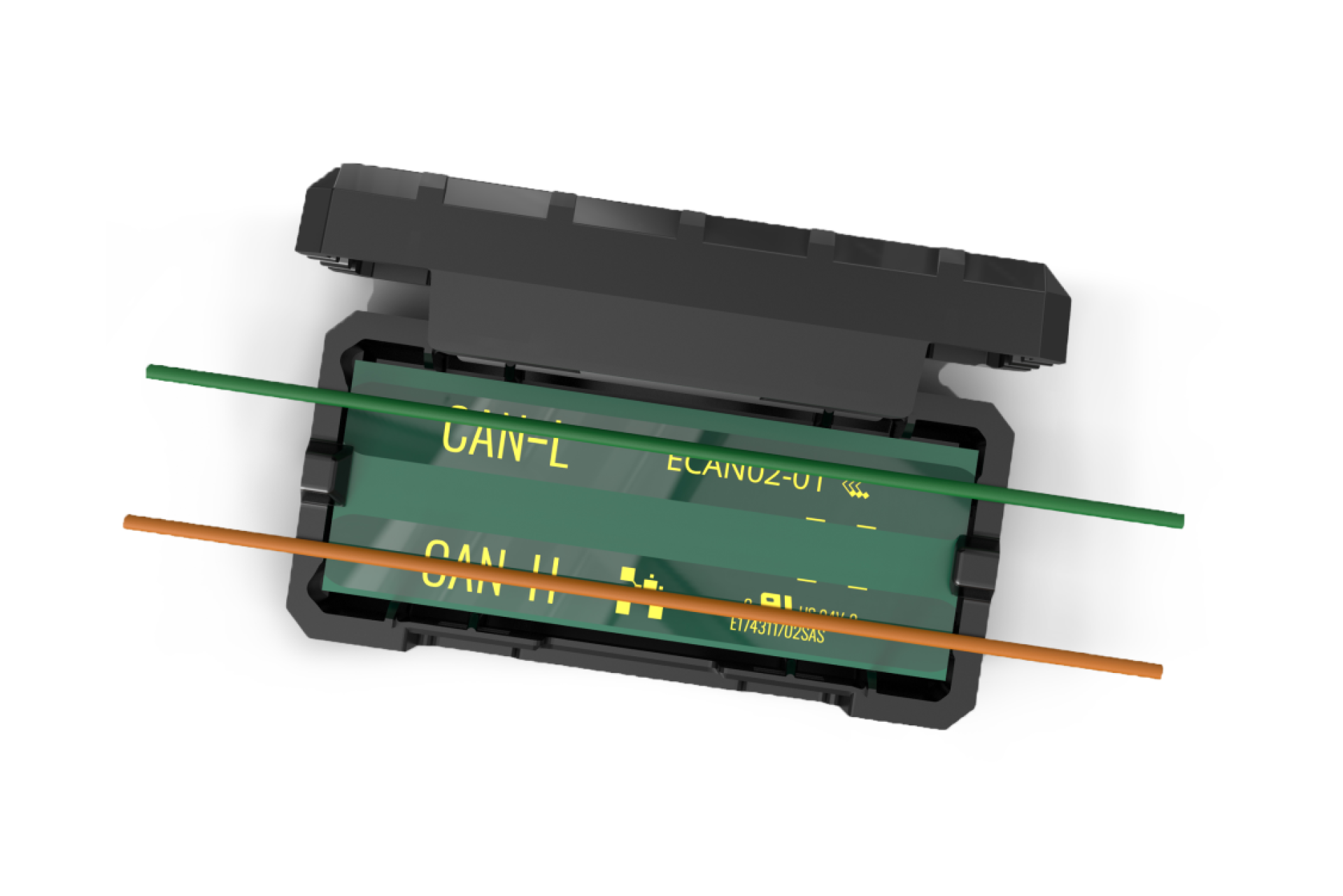

ECAN02 Adaptador CAN s/contato c/fios p/leitura do barramento CAN

Código: 32593 Marca:
R$ 363,48 R$ 308,96
Comprar Disponibilidade: 25 dias úteis Estoque: 49 unidades
  • R$ 308,96 Pix
  • R$ 308,96 Boleto Bancário
* Este prazo de entrega está considerando a disponibilidade do produto + prazo de entrega.

PRODUCT SPECIFICATIONS

Power
Input voltage range

10–30 V DC

Power consumption

At 12 V < 1,7 mA (Standby)

At 12 V < 7,5 mA (Working)

Physical specification
Dimensions

39.0 x 19.0 x 12.0 mm (L x W x H)

Weight

16,1 g

Operating environment
Operating temperature (without battery)

-40°C to +85°C

Operating humidity

Max 85% non-condensing

Suitable for
Supported by

LV-CAN200, ALL-CAN300, FMX650, FMB140, FMB240, FMX150, FMX250

Technical data
Features
  • ECAN02 collects vehicle data from CAN bus without damaging the wires
  • Powered from on-board power source
  • Reads the signals through the isolation of CAN bus wires
  • Easy to install and operate
  • CAN-BUS speeds from 33 to 1000 kb/s
  • Automatically adjusts signal level and speed
R$ 363,48 R$ 308,96
Comprar Disponibilidade: 25 dias úteis Estoque: 49 unidades
