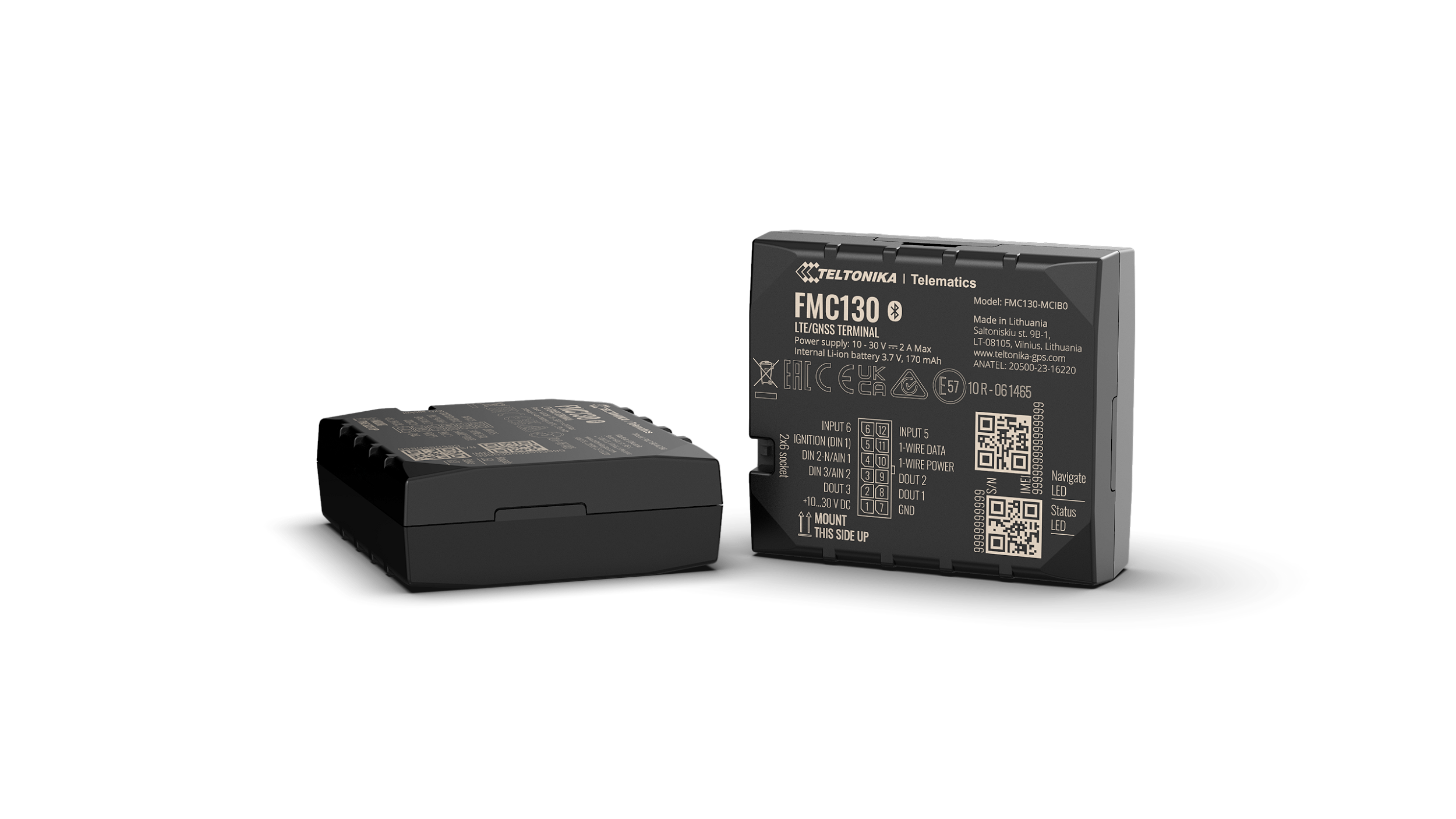

FMC130 Rastreador Veicular 4G LTE Cat 1. Teltonika

Código: 32608 Marca: TELTONIKA-GPS

~~R$ 1.250,83~~ R$ 1.063,21

Qtde: Comprar Disponibilidade: 25 dias úteis Estoque: 77 unidades

R$ 1.063,21
R$ 1.063,21

PRODUCT SPECIFICATIONS

Module

Name

FMC130-ME1: MeiG SLM320-E1 with Teltonika TM2500

FMC130-ME3: MeiG SLM320-E2 with Teltonika TM2500

FMC130-MCIB0: MeiG SLM320-LA with Teltonika TM2500

Technology

LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE

GNSS

GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS

Receiver

33 tracking channels

99 acquisition channels

Tracking sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Cellular

Technology

LTE Cat 1, GSM

2G bands

FMC130-ME1: GSM: B2/B3/B5/B8

FMC130-ME3: GSM: B2/B3/B5/B8

FMC130-MCIB0: GSM: B2/B3/B5/B8

4G LTE bands

FMC130-ME1: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41

FMC130-ME3: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41

FMC130-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40

Data transfer

LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)

LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)

GSM:GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)

Data support

SMS (text/data)

Transmit power

Class 4 for GSM850/900: 33±2dBm

Class 1 for GSM1800/1900: 30±2dBm

Class 3 for LTE-TDD: 23±2.7dBm

Class 3 for LTE-FDD: 23±2.7dBm

Power

Input voltage range

10-30 V DC with overvoltage protection

Internal Back-up battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Internal fuse

3A, 125V

Power consumption

At 12V < 250 mA Max. (with full Load / Peak):

At 12V < 3 mA (Ultra Deep Sleep)

At 12V < 5 mA (Deep Sleep)

At 12V < 16 mA (Online Deep Sleep)

At 12V < 18 mA (GPS Sleep)

At 12V < 33 mA (nominal with no load)

At 12V < 250 mA Max. (with full Load / Peak)

Bluetooth® Technology

Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

Dimensions

65 x 56,6 x 20,6 mm (L x W x H)

Weight

61 g

Operating environment

Operating temperature (without battery)

-20 °C to +85 °C

Storage temperature (without battery)

-20 °C to +85 °C

Operating temperature (with battery)

-20 °C to +40 °C

Storage temperature (with battery)

-20 °C to +45 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interface

Digital Inputs

Negative Inputs

1 (Digital Input 2)

Impuls Inputs

2 (Digital Input 1, Digital Input 2)

Digital Outputs

Analog Inputs

CAN Adapter Inputs

1-Wire

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

Micro-SIM or eSIM

Memory

128MB internal flash memory

Features

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming (Jamming detection feature supported only on hardware with SLM320-E and SLM320-LA)

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)

SMS

Configuration, Events, DOUT control, Debug

GPRS commands

Configuration, DOUT control, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel monitoring

LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle

Ignition detection

Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certification & approvals

Regulatory

CE/RED, E-Mark, EAC, RoHS, REACH, CITC, RCM, IMDA, Anatel, JATE, TELEC, SIRIM QAS, SDPPI POSTEL, KC, ICASA, SUTEL
