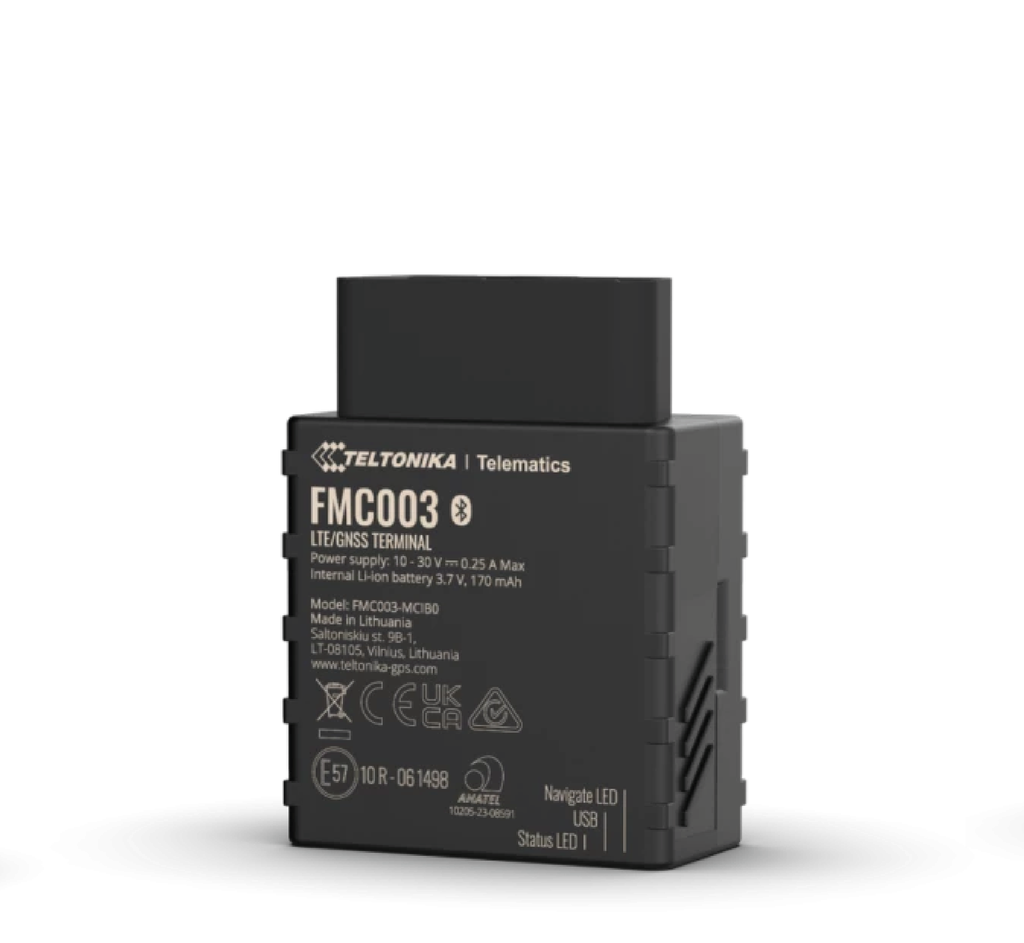

FMC003 Rastreador OBD-II c/conect. 4G LTE Cat 1, detecção de colisão,geofencing

Código: 32595 Marca: TELTONIKA-GPS

~~R$ 1.674,97~~ R$ 1.423,72

Qtde: Comprar Disponibilidade: 25 dias úteis Estoque: 214 unidades

R$ 1.423,72
R$ 1.423,72

PRODUCT SPECIFICATIONS

Module

Name

Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA

Technology

LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE

GNSS

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver

33 tracking channels

99 acquisition channels

Tracking sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Cellular

Technology

LTE Cat 1/GSM

2G bands

GSM: B2/B3/B5/B8

4G LTE bands

SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40

Data transfer

LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)

LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)

GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)

Transmit power

Class 4 for GSM850/900: 23±2dBm

Class 1 for GSM1800/1900: 20±2dBm

Class 3 for LTE-TDD: 23±2.7dBm

Class 3 for LTE-FDD: 23±2.7dBm

Data support

SMS (text/data)

Power

Input voltage range

10 - 30 V DC with overvoltage protection

Internal Back-up battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Power consumption

At 12V < 3 mA (Ultra Deep Sleep)

At 12V < 5 mA (Deep Sleep)

At 12V < 16 mA (Online Deep Sleep)

At 12V < 18 mA (GPS Sleep)

At 12V < 33 mA (nominal with no load)

At 12V < 2A Max. (with full Load / Peak)

Bluetooth® Technology

Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

Dimensions

67,2 x 49,6 x 25 mm (L x W x H)

Weight

63 g

Operating environment

Operating temperature (without battery)

-40 °C to +85 °C

Storage temperature (without battery)

-40 °C to +85 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interface

Connection

OBDII Socket

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

Micro-SIM

Memory

128MB internal flash memory

OBD Interface

Data

HS CAN, MS CAN, SW CAN, K-line

Data reading

OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 14229 (UDS)

J2819 (VW TP2.0)

Features

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)

SMS

Configuration, Events, Debug

GPRS commands

Configuration, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel monitoring

OBDII, OEM fuel level

Ignition detection

Accelerometer, External Power Voltage, Engine RPM

Certification & approvals

Regulatory

CE/RED, UKCA, E-Mark, EAC, RoHS, REACH, CITC, Anatel, RCM, SDPPI POSTEL, SIRIM QAS
