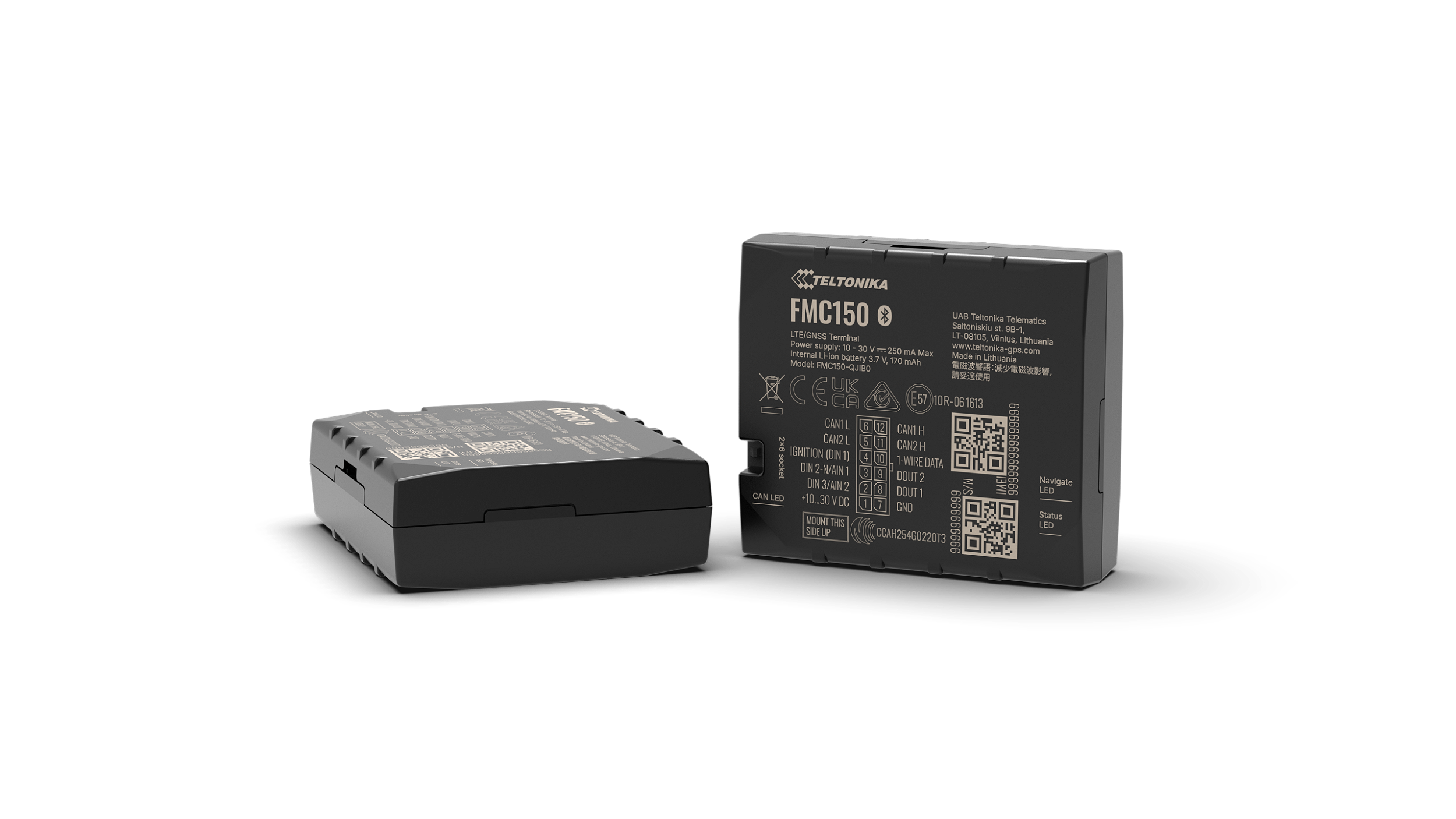

FMC150 - Advanced 4G LTE Cat 1 GPS tracker with integrated CAN data processor Teltonika

Código: 2 Marca: TELTONIKA-GPS

~~R$ 1.763,83~~ R$ 1.499,26

Qtde: Comprar Disponibilidade: 25 dias úteis Estoque: 188 unidades

R$ 1.499,26
R$ 1.499,26

PRODUCT SPECIFICATIONS

Module

Name

FMC150-QJIB0: Quectel EG915U-EU with Teltonika TM2500

FMC150-QKIB0: Quectel EG915U-LA with Teltonika TM2500

Technology

LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver

33 tracking channels

99 acquisition channels

Tracking sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Cellular

Technology

LTE Cat 1, GSM

2G bands

FMC150-QJIB0: GSM: B2/B3/B5/B8

FMC150-QKIB0: GSM: B2/B3/B5/B8

4G LTE bands

FMC150-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28

FMC150-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66

Data transfer

LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)

LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)

GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)

Data support

SMS (text/data)

Power

Input voltage range

10 - 30 V DC with overvoltage protection

Internal Back-up battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Power consumption

At 12V < 6mA (Ultra Deep Sleep)

At 12V < 8mA (Deep Sleep)

At 12V < 11mA (Online Deep Sleep)

At 12V < 20mA (GPS Sleep)

At 12V < 35 mA (Nominal with no load)

At 12V < 250 mA Max. (with full Load / Peak)

Bluetooth® Technology

Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

Dimensions

65 x 56,6 x 20,6 mm (L x W x H)

Weight

55 g

Operating environment

Operating temperature (without battery)

-40 °C to +85 °C

Storage temperature (without battery)

-40 °C to +85 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interface

Digital Inputs

FMC150-QJIB0: 3

FMC150-QKIB0: 2

Negative Inputs

FMC150-QJIB0: 1 (Digital Input 2)

FMC150-QKIB0: –

Impuls Inputs

FMC150-QJIB0: 2 (Digital Input 1, Digital Input 2)

FMC150-QKIB0: 1 (Digital Input 1)

Analog Inputs

FMC150-QJIB0: 2

FMC150-QKIB0: 1

Digital Outputs

FMC150-QJIB0: 2

FMC150-QKIB0: 3

CAN interfaces

1-Wire

1 (1-Wire data)

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

SIM

Micro-SIM or eSIM

Memory

128MB internal flash memory

Features

CAN Data

Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position

Supported protocols

OEM, J1939, IES500, IES125

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)

SMS

Configuration, Events, DOUT control, Debug

GPRS commands

Configuration, DOUT control, Debug

Time Synchronization

GNSS, NITZ, NTP

Ignition detection

Digital Input 1, Accelerometer, External Power Voltage, Engine RPM

Certification & approvals

Regulatory

CE / RED, UKCA, E-Mark, RoHS, REACH, RCM, CITC, TDRA, SDPPI (POSTEL), SIRIM QAS, Anatel
