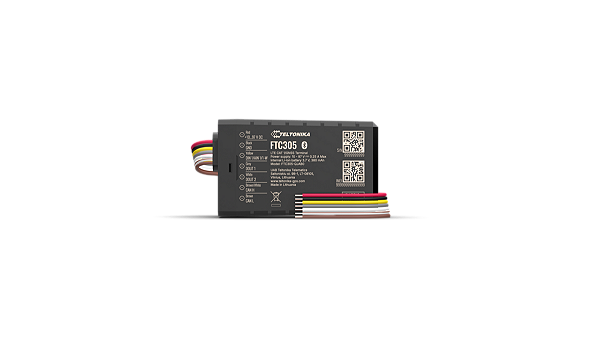

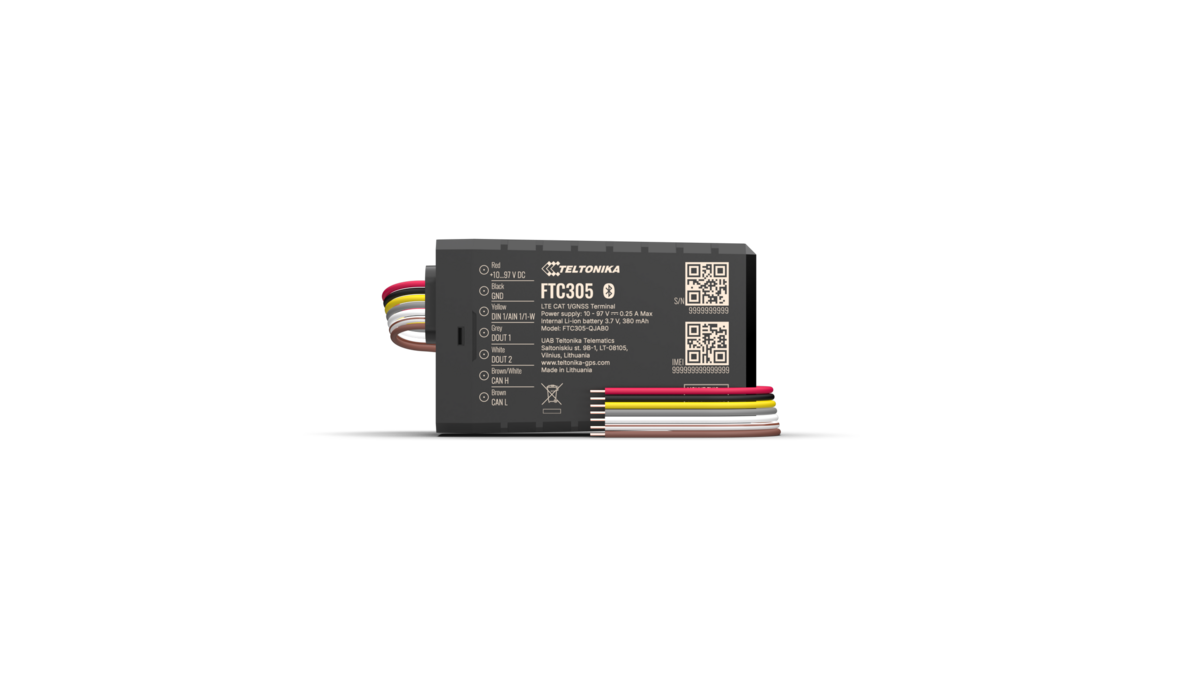

FTC305 - Compact 4G LTE Cat 1 e-mobility tracker with CAN data reading and flexible installation options

Código: 1 Marca: TELTONIKA-GPS

~~R$ 2.094,94~~ R$ 1.780,70

Qtde: Comprar Disponibilidade: 25 dias úteis Estoque: 91 unidades

R$ 1.780,70
R$ 1.780,70

PRODUCT SPECIFICATIONS

Product

Model name

FTC305-QJAB0

FTC305-QKAB0

FTC305-QJXB0

FTC305-QKXB0

Module

Name

FTC305-QJAB0: Quectel EG915U-EU, internal antennas, casing version

FTC305-QKAB0: Quectel EG915U-LA, internal antennas, casing version

FTC305-QJXB0: Quectel EG915U-EU, external antennas, external battery, no casing version

FTC305-QKXB0: Quectel EG915U-LA, external antennas, external battery, no casing version

Technology

LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS

GPS, GLONASS, GALILEO, BEIDOU

Receiver

L1: 75 channel

Tracking sensitivity

-165 dBM

Position Accuracy

< 1.8 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cellular

Technology

LTE CAT 1/GSM

2G bands

GSM: B2/B3/B5/B8

4G LTE bands

FTC305-QJAB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28

FTC305-QJXB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28

FTC305-QKAB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66

FTC305-QKXB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66

Data transfer

LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)

GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmit power

Class 4 for GSM900: 33 dBm ± 2 dB
Class 1 for DCS1800: 30 dBm ± 2 dB
Class 3 for LTE-FDD: 23 dBm ± 2 dB

Data support

SMS (TEXT, PDU), Network protocols (TCP, UDP)

Data codec

Codec support

Codec 8 Extended

Power

Input voltage range

10 - 97 V DC

Internal Back-up battery

Casing version: 380 mAh Li-ion battery 3.7 V (1.41 Wh)

No casing version: 1200 mAh Li-ion battery 3.7 V (4.44 Wh) (External)

Internal fuse

3 A

Power consumption

At 12V < 40 mA (Nominal with no load)

At 12V < 0.25 A Max (with full Load/Peak)

Bluetooth® Technology

Specification

5.3 + LE*

EYE sensors and EYE beacons support

Physical specification

Dimensions

Casing version: 69 x 41 x 20.9 mm (L x W x H)

No casing version: 62 x 39.6 x 11.5 mm (L x W x H)

Weight

Casing version: 76.8 g

No casing version (with accessories): 126.1 g

Operating environment

Operating temperature

-30 °C to +85 °C

Storage temperature

-30 °C to +85 °C

Operating humidity

65 ± 20% non-condensing

Ingress Protection Rating

Casing version: IP67

No casing version: N/A

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

Casing version: -10 °C to +25 °C for 3 or more months

No casing version: -20 °C to +45 °C for 3 or more months

Interface

Digital Inputs

Digital Outputs

Analog Inputs

1-Wire

CAN

GNSS antenna

Casing version: Internal High Gain

No casing version: External (SMA female connector)

Cellular antenna

Casing version: Internal High Gain

No casing version: External (RP SMA female connector)

USB

2.0 USB Type-C

LED indication

2 status LED lights

SIM

Nano-SIM

Memory

128MB internal flash memory

Features

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands

Sleep modes

Online sleep, Deep sleep, Power off sleep

Configuration and firmware update

FOTA WEB, Telematics Configuration Tool (TCT)

Time Synchronization

GNSS, NITZ, NTP

Ignition detection

Digital Input 1, Accelerometer, External Power Voltage, Manual CAN
